Product details

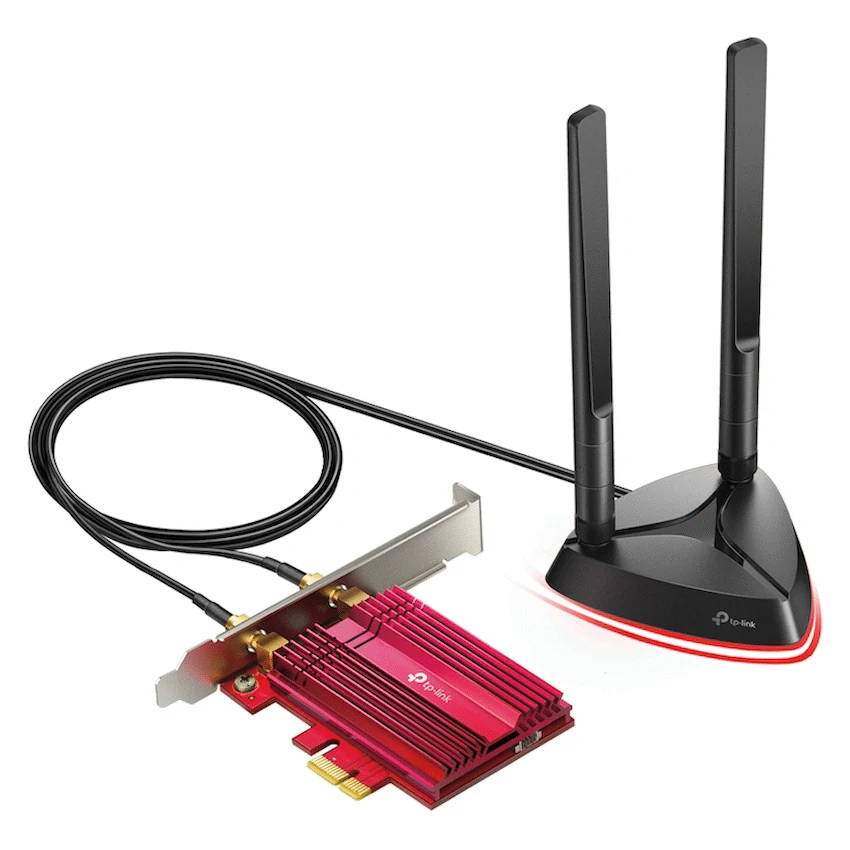

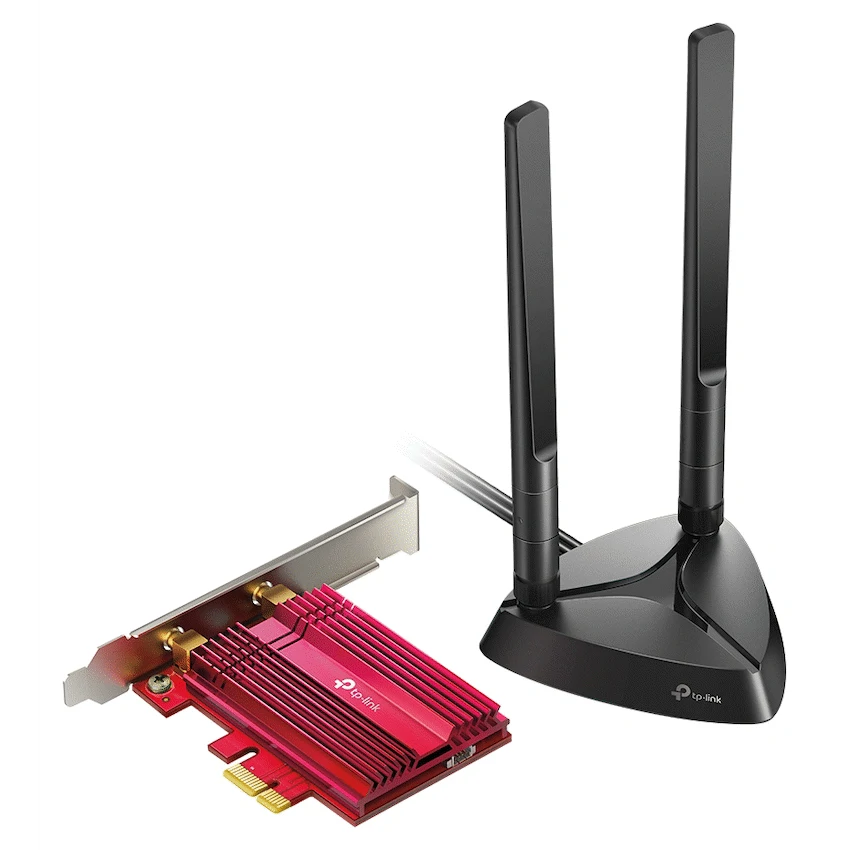

TP-Link Archer TX3000E AX3000 Wi-Fi 6 Bluetooth 5.0 PCI
Unrivaled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
Smoother Experience—75% lower latency ensures ultra-responsive real-time gaming
Reliable Connections—Intel® Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router
Wider Signal Coverage—Two multi-directional antennas with magnetized base are designed for optimum signal reception
Bluetooth 5.0—The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2
Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety

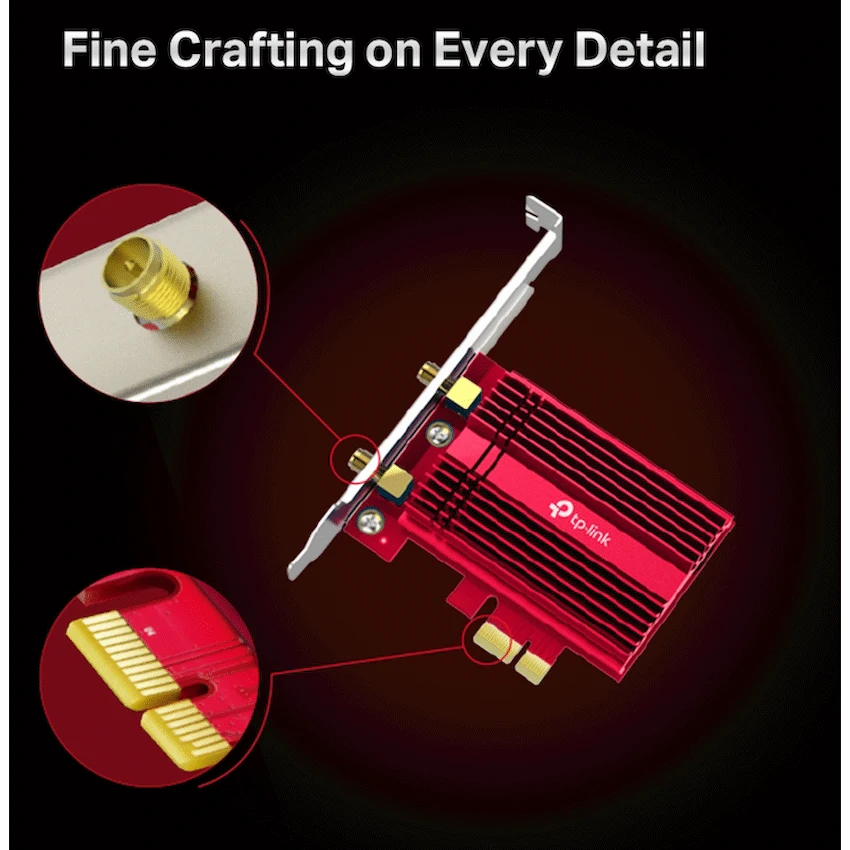

Fine Crafting—Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments
Backward Compatibility – Full support for 802.11ac/a/b/g/n standards.
HARDWARE FEATURES
Dimensions: 95.2 x 120.8 x 21.5 mm
Antenna Type Two High-Gain Dual Band Antennas
Magnetized Antenna Base
Chipset Intel Wi-Fi 6 Chipset
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.0/4.2/4.0
WLAN Signal Rate 5 GHz
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1733 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity 5 GHz :
11ax HT160?-56.25dBm
11ax HT80: -59dBm
11ax HT40: -62.25dBm
11ax HT20: -65dBm
11ac HT160?-62dBm
11ac HT80: -65.5dBm
11ac HT40: -69.75dBm
11ac HT20: -73.75dBm
11n HT40: -74.5dBm
11n HT20: -77.5dBm
11a 54Mbps: -77.75dBm
11a 6Mbps: -94.5dBm
2.4GHz :
11ax HT40: -60.75dBm
11ax HT20: -63.75dBm
11n HT40: -73dBm
11n HT20: -76.25dBm
11g 54Mbps: -76.5dBm
11b 11Mbps: -89dBm
WLAN Transmit Power 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP)
WLAN Modes Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
Bluetooth Profiles Archer TX3000E support the native BT profiles implemented in Windows 10.
For the latest information on Windows 10 BT profiles please refer to https://support.microsoft.com/en-us/help/10568/windows-10-supported-bluetooth-profiles
System Requirements Windows 10(64-bit) only
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

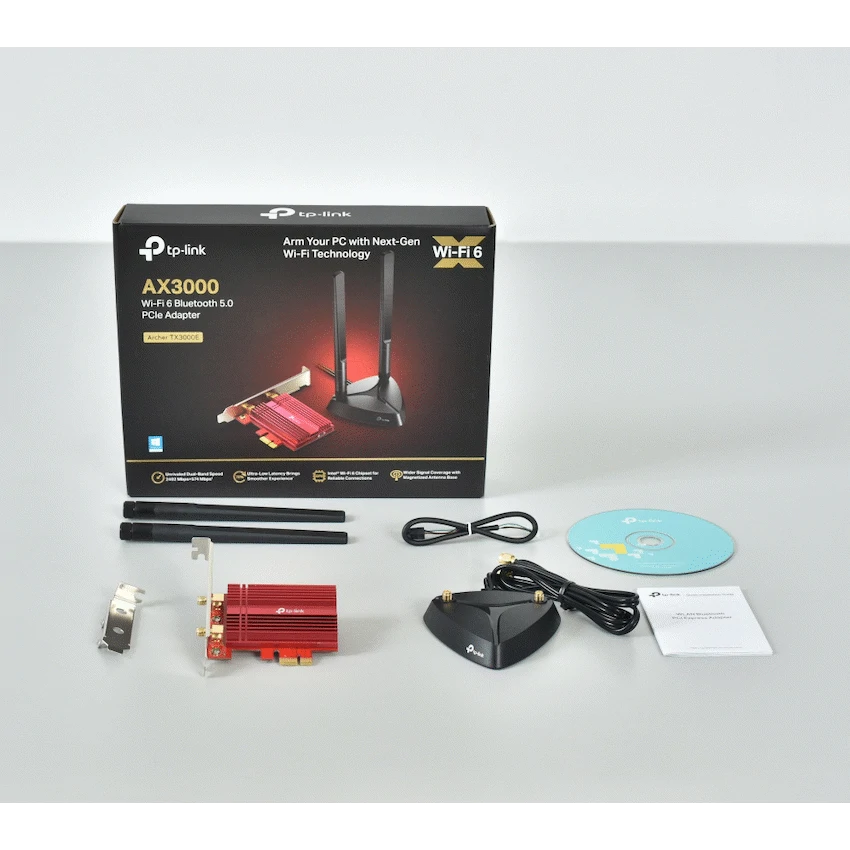

What’s in the box
Magnetized Antenna Base with 1m RF Cable
Two 5 dBi High Gain Antennas
Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource CD
Unrivaled Wi-Fi 6 Speed
Smoother Experience
Reliable Connections
Wider Signal Coverage
Bluetooth 5.2
Improved Security
Fine Crafting
Backward Compatibility
